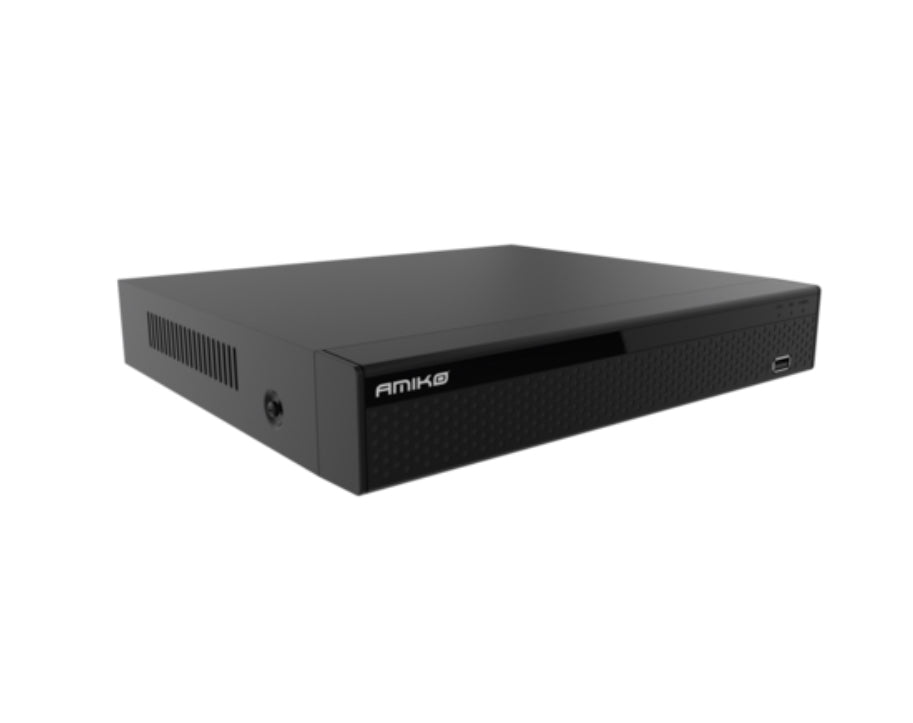

Amiko Home NVR 16250 16CH POE

Amiko Home NVR met 16 Poe poorten, te gebruiken met BitVision App.


HEVC H.265 (Support H.265+/H.265/H.264+/H.264 Video Format)

25CH NVR with 16 POE ports

max. 8 TB HDD capacity

Up to 8MP Resolution Recording and Playback

HD and VGA Output

HD Port up to 3840×2160/30Hz



• 2x USB 2.0 interfaces
• VGA
• HD out
• ONVIF support
• Live streaming to Android & iOS devices
• 1x SATA HDD/SSD support up to 8 TB
• EU black
• Power supply: 230VAC

System resources:



•  Main CPU: ARM Cortex A7 Processor

Video:



• Input: up to 25 channels
• Input resolutions: 3840×2160, 2592x1944, 2048x1536, 1920×1080, 1280×960, 1280×720, etc.
• Input bandwidth: 100 MB/s max.
• Record compression: H265/H264/H265+/H264+
• Record Resolution:  4k(3840×2160),5MP(2592×1944),4MP(2688×1520),3MP(2048×1536),1080P(1920×1080),960P(1280x960),720P(1280×720),D1 (720×576/720×480)
• Record rate: PAL : 4K@10x25fps,5MP@25×25fp,4MP@25x25fp,3MP@25×25fp,1080P@25×25fp, 960P@25×25fp,720P@25×25fp, D1@25×25fp
• Record mode: Manual\Timer\Motion Detection

Display:



• VGA resolution: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• HD out resolution: 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

A/V & Data Input / Output:



• VGA: Video output
• HD out: Digital video output
• SATA: 1 x SATA interface for 2.5" / 3.5" HDD (up to 8 TB)
• USB: 2 x High Speed USB 2.0 interfaces
• Ethernet: 16 x RJ45 PoE (10M/100M Adaptive Ethernet Interface)+1xRJ45 10M/100M/1000M Adaptive Ethernet Interface

Physical specifications:



•  Environment: -10~55℃(Humidity: 10%-90%)
•  Dimensions (WxDxH): 310mm*295mm*46mm
• Weight:          4.0 kg (without HDD)
